LS7 engine

The all-new LS7 of the ’06 Z06 reintroduces the 427-cubic-inch engine to the Corvette lineup. Unlike the previous 427 engine, which was a big-block design, the new 7.0-liter LS7 is a small-block V-8 - the largest-displacement small-block ever produced by GM and a tribute to its 50 years as a performance icon.

With 505 horsepower and 475 lb.-ft. of torque, it also is the most powerful passenger car engine ever produced by Chevrolet and GM. The LS7 is easily identified under the hood by red engine covers with black lettering.

The LS7 shares the same basic Gen IV V-8 architecture as the Corvette’s 6.0-liter LS2, but the LS7 uses a different cylinder block casting with pressed-in steel cylinder liners to accommodate the engine’s wide, 104.8-mm-wide cylinder bores; the LS2 has 101.6-mm bores. And when compared to the LS2, the LS7 also has a different front cover, oil pan, exhaust manifolds and cylinder heads.

Internally, the LS7’s reciprocating components make use of racing-derived lightweight technology, including titanium connecting rods and intake valves, to help boost horsepower and rpm capability. The rpm fuel shut-off limit is 7000 rpm.

The LS7’s specifications include:

  • Unique cylinder block casting with large, 104.8-mm bores and pressed-in cylinder liners
  • Forged steel main bearing caps
  • Forged steel crankshaft
  • Titanium connecting rods with 101.6-mm stroke
  • Cast aluminum flat-top pistons
  • 11.0:1 compression
  • Dry-sump oiling system
  • Camshaft with .591-inch lift
  • Racing-derived CNC-ported aluminum cylinder heads with titanium intake valves and sodium-filled exhaust valves
  • Titanium pushrods and valve springs
  • Low-restriction air intake system
  • Hydroformed exhaust headers with unique “quad flow” collector flanges.

“In many ways, the LS7 is a racing engine in a street car,” said Dave Muscaro, assistant chief engineer of small-block V-8 for passenger cars. “We’ve taken much of what we’ve learned over the years from the 7.0-liter C5-R racing program and instilled it here. There really has been nothing else like it offered in a GM production vehicle.”

One of the clearest examples of the LS7’s race-bred technology is its use of titanium connecting rods. They weigh just 480 grams apiece, almost 30 percent less than the rods in the LS2 V-8. Besides being lightweight, which enhances high-rpm performance and rpm range, titanium makes the rods extremely durable.

The LS7’s CNC-ported aluminum cylinder heads are all-new and designed to meet the high airflow demands of the engine’s 7.0-liter displacement, as it ingests approximately 100 cubic feet more air per minute than the Corvette’s 6.0-liter LS2 V-8 - an 18-percent increase in airflow. Consequently, a hydraulic roller camshaft with .591/.591-inch valve lift is used to allow plenty of air to circulate in and out of the engine.

To ensure optimal, uninterrupted airflow, the LS7’s heads have straight, tunnel-like intake runners. Very large by production-vehicle standards - even racing standards - they are designed to maintain fast airflow velocity, providing excellent torque at low rpm and exhilarating horsepower at high rpm. The heads feature 70-cc combustion chambers which are fed by huge, 56-mm-diameter titanium intake valves. The lightweight titanium valves weigh 21 grams less than the stainless steel valves used in the LS2, despite the valve head having 22 percent more area. They are complemented by 41-mm sodium-filled exhaust valves, vs. 39.4-mm valves in the LS2. To accommodate the large valve face diameters, the heads’ valve seats are siamesed; and, taken from experience with the engines of C5-R racecars, the LS7’s valve angles are held at 12 degrees - versus 15 degrees for the LS2 - to enhance airflow through the ports.

All LS7 engines are assembled by hand at GM Powertrain’s new Performance Build Center in Wixom , Mich. The exacting standards to which they are built include deck-plate honing of the cylinders - a procedure normally associated with the building of racing engines and almost unheard of in a production-vehicle engine.

Dry sump oiling system

The LS7 has a dry-sump oiling system designed to keep the engine fully lubricated during the high cornering loads the Corvette Z06 is capable of producing. An engine compartment-mounted 8-quart reservoir delivers oil at a constant pressure to a conventional-style oil pump pick-up at the bottom of the engine. The pressurized oil feed keeps the oil pick-up continually immersed in oil at cornering loads exceeding 1 g.

Oil circulates through the engine and down to the oil pan, where it is sent back to the reservoir via a scavenge pump. The large-capacity reservoir, combined with a high efficiency air-to-oil cooler, provides necessary engine oil cooling under the demands of the engine’s power output. With the dry-sump system, oil is added to the engine via the reservoir tank - which includes the oil level dipstick.

The LS7’s dry-sump system was developed and tested on racetracks in the United States and Europe , including Germany ’s famed Nürburgring. And while common in racing cars, the Corvette Z06 is one of just a handful of production vehicles - and the only production Corvette - to ever incorporate such a high-performance oiling system.

Drivetrain

The Corvette Z06’s powertrain and drivetrain systems are matched to the LS7’s performance capability. The light, four-into-one headers discharge in to new, close-coupled catalytic converters and through to new “bi-modal” mufflers. The mufflers each feature a vacuum-actuated outlet valve, which controls exhaust noise during low-load operation but opens for maximum power.

At the rear of the LS7 engine, a single-mass flywheel and lightweight, high-capacity clutch channel torque to the rear transaxle. The six-speed manual transmission has been strengthened to handle the LS7’s increased torque load. The transmission includes a pump which sends transmission fluid to the front radiator for cooling. Upon its return, the fluid removes additional heat from the differential lube before returning to the transmission.

The M6 transmission connects to a limited-slip differential, with enlarged ring and pinion gears. Stronger axle half-shafts with tougher universal joints transmit power to the rear wheels.

Overview

Models:

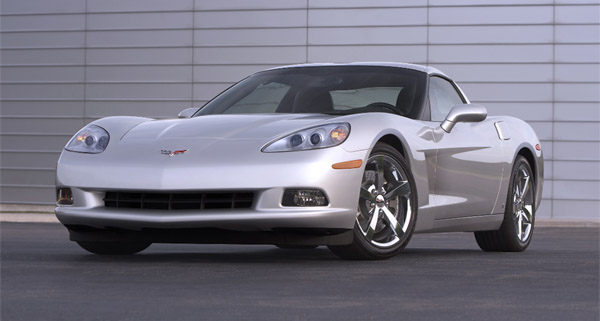

Chevrolet Corvette coupe and 2006 Corvette Z06

Body styles / driveline:

2-door hatchback coupe with removable roof; rear-wheel drive (coupe);

2-door hatchback coupe with fixed roof; rear-drive (Z06)

Construction:

composite body panels, hydroformed steel frame with aluminum and magnesium structural and chassis components (coupe);

composite and carbon-fiber body panels, hydroformed aluminum frame with aluminum and magnesium structural and chassis components (Z06)

Manufacturing location:

Bowling Green, Kentucky


Engine

6.0L V-8 LS2

7.0L V-8 LS7

Displacement (cu in / cc):

364 / 5967

427 / 7011.3

Bore & stroke (in / mm):

4 x 3.62 / 101.6 x 92

4.125 x 4 / 104.8 x 101.6

Block material:

cast aluminum

cast aluminum

Cylinder head material:

cast aluminum

cast aluminum

Valvetrain:

OHV, 2 valves per cylinder

OHV, 2 valves per cylinder

Fuel delivery:

SFI (sequential fuel injection)

SFI (sequential fuel injection)

Compression ratio:

10.9:1

11:1

Horsepower
(hp / kw @ rpm):

400 / 298 @ 6000

505 / 373 @ 6200

Torque (lb-ft / Nm @ rpm):

400 / 542 @ 4400

475 / 657 @ 4800

Recommended fuel:

93 octane (recommended but not required)

93 octane

Estimated fuel economy

(mpg city / hwy / combined):

automatic: 18 / 25 / 21

manual: 19 / 28 / 23

TBD


Transmission

Corvette coupe

Corvette Z06

Type:

Hydra-Matic 4L65-E 4-speed auto.; Tremec 6-speed manual

Tremec 6-speed manual

Chassis / Suspension

Front:

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

Rear:

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber

Traction control:

electronic traction control; Active Handling

electronic traction control; Active Handling


Brakes

Corvette coupe

Corvette Z06

Type:

front and rear power-assisted disc with ABS; cross-drilled rotors with Z51 Performance Package

front and rear power-assisted disc with ABS with 6-piston front and 4-piston rear calipers, cross-drilled rotors

Rotor diameter x thickness (in / mm):

front: 12.8 x 1.26 / 325 x 32
rear: 12 x 1 / 305 x 26;
s Z51 Performance Package:
front: 13.4 x 1.26 / 340 x 32
rear: 13 x 1 / 330 x 26

front: 14 x 1.3 / 355 x 32
rear: 13.4 x 1 / 340 x 26

Wheels & Tires

Wheel size:

front: 18 inch x 8.5 inch
rear: 19 inch x 10 inch

front: 18 inch x 9.5 inch
rear: 19 inch x 12 inch

Tires:

Goodyear Eagle F1 GS
Extended Mobility
front: P245/40ZR18
rear: P285/35ZR19

Goodyear Eagle F1 Supercar Extended Mobility
front: P275/35ZR18
rear: P325/30ZR19


Dimensions

Corvette coupe

Corvette Z06

Wheelbase (in / mm):

106 / 2629

106 / 2629

Overall length (in / mm):

175 / 4445

175 / 4445

Overall width (in / mm):

73 / 1854

76 / 1930

Overall height (in / mm):

49 / 1244

49 / 1244

Curb weight (lb / kg):

3179 / 1442

3130 / 1419.7

Source: http://www.corvettemuseum.com
